QGF-3 Automatic Yogurt Cup Filling and Sealing Machine

Request a QGF-3 Quote Contact Our Sales Team

Overview

The QGF-3 is an automatic cup filling and sealing machine for dairy products, beverages and semi-fluid products. Its main body is made of 304 stainless steel, with a CIP cleaning system and an air purification cover.

Applications

Applications include coffee cream, fermented milk, set-style yogurt, ice cream, fruit juice and semi-fluid pastes. Please confirm the filling and cleaning configuration for your product.

Operating Process and Features

Cup feeding → dust suction and removal → filling → film placement → sealing and inspection → lid placement and pressing → finished cup discharge.

PLC control with a human-machine interface.
Variable-frequency speed adjustment.
Independent temperature control for the heat sealing heads.
Functional modules can be added or removed according to production requirements.

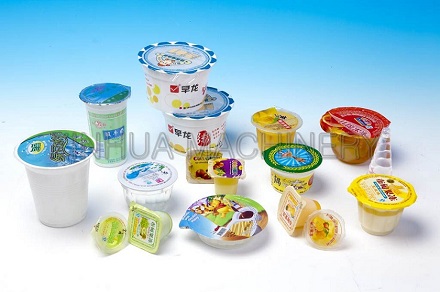

Examples of cups for QGF-3 filling and sealing

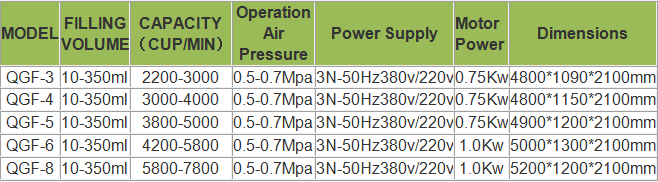

Technical Specifications

Specification	Details
Model	QGF-3
Filling volume	10–350 ml
Output	2,200–3,000 cups/hour
Working air pressure	0.5–0.7 MPa
Power supply	3N–50 Hz, 380 V / 220 V
Motor power	0.75 kW
Dimensions (L × W × H)	4800 × 1090 × 2100 mm

Please confirm output, cup dimensions and the required cleaning configuration before ordering.

Related Machines

Share your product and packaging requirements so we can help compare suitable configurations.

Request a Quote

For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.

Email Us About QGF-3

Overseas sales: xinhua@xinhuacn.com
