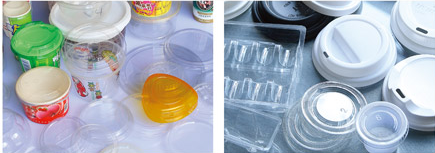

The CQ-350 forms, punches and cuts PVC, PS and PET sheets into cup lids, trays and other packaging containers.
Packaging components used in food, pharmaceutical, daily chemical and hardware applications. Provide the sheet specification and finished product drawing for mould selection.
Sheet feeding and thermoforming → punching and cutting → edge-scrap collection.
| Specification | Details |
|---|---|
| Model | CQ-350 |
| Cutting rate | 15–35 cycles/min |
| Power supply | 380 V / 220 V, 50 Hz |
| Feed stroke range | 40–120 mm |
| Maximum forming area | 350 × 120 mm |
| Maximum forming depth | 50 mm |
| Upper forming heater power | 2.0 kW |
| Lower forming heater power | 2.0 kW |
| Motor power | 1.5 kW |
| Working air pressure | 0.4–0.6 MPa |
| Sheet dimensions (thickness × width) | 0.1–0.6 × 350 mm |
| Dimensions (L × W × H) | 2650 × 900 × 1700 mm |
| Machine weight | 1200 kg |
Please confirm output, filling range, packaging dimensions and utilities for your product and selected configuration before ordering.
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging dimensions, filling quantity, required output and destination country. Include a packaging drawing or sample photo if available.
