The QGF-Z series forms plastic cups or boxes, fills the product, seals the packaging and cuts the finished packs. It combines these steps in an automatic production process.

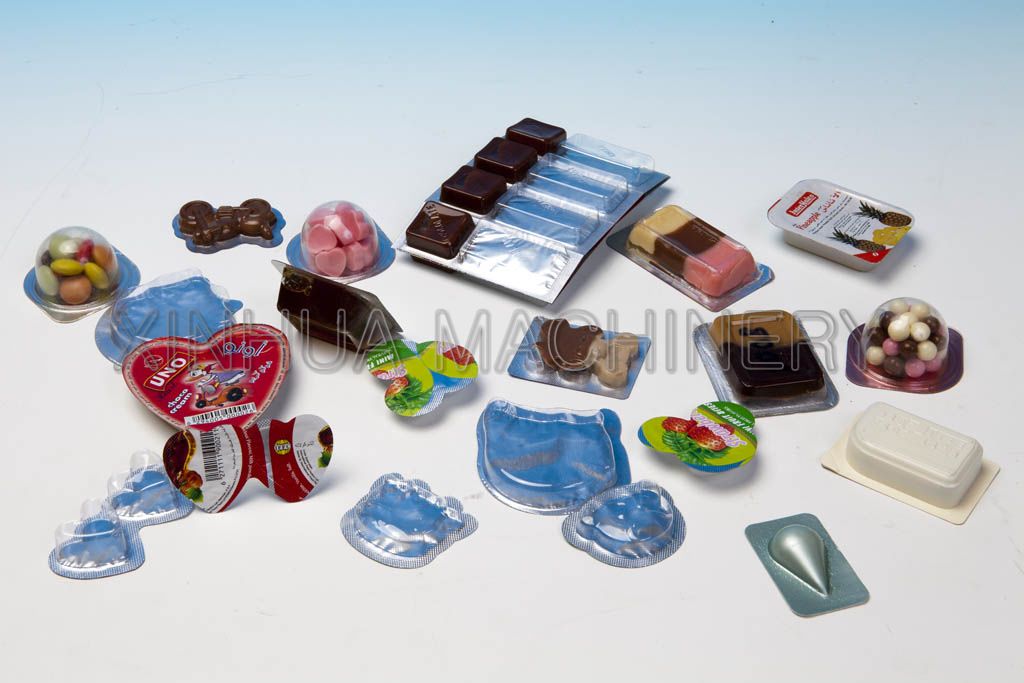

Suitable applications include tomato sauce, fruit jam, chocolate sauce and butter, as well as biscuits and candies. Please provide your product and packaging requirements so we can confirm the appropriate configuration.
Vacuum forming → filling → photoelectric alignment → sealing → cutting and separating → finished pack discharge.

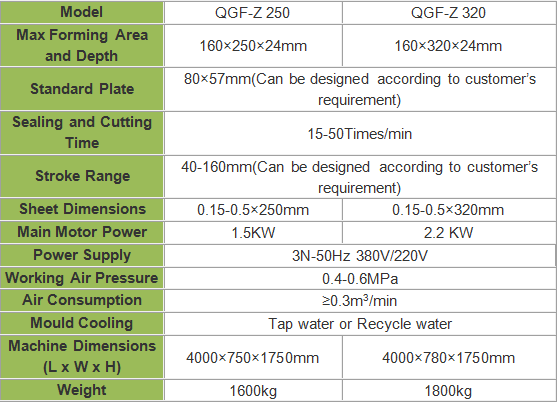

| Model | QGF-Z 250 | QGF-Z 320 |
|---|---|---|
| Maximum forming area and depth | 160 × 250 × 24 mm | 160 × 320 × 24 mm |
| Standard plate | 80 × 57 mm; customizable | 80 × 57 mm; customizable |
| Sealing and cutting rate | 15–50 cycles/min | 15–50 cycles/min |
| Stroke range | 40–160 mm; customizable | 40–160 mm; customizable |
| Sheet dimensions | 0.15–0.5 × 250 mm | 0.15–0.5 × 320 mm |
| Main motor power | 1.5 kW | 2.2 kW |
| Power supply | 3N–50 Hz, 380 V / 220 V | 3N–50 Hz, 380 V / 220 V |
| Working air pressure | 0.4–0.6 MPa | 0.4–0.6 MPa |
| Air consumption | ≥ 0.3 m³/min | ≥ 0.3 m³/min |
| Mould cooling | Tap water or recirculating water | Tap water or recirculating water |
| Machine dimensions (L × W × H) | 4000 × 750 × 1750 mm | 4000 × 780 × 1750 mm |
| Machine weight | 1600 kg | 1800 kg |
The sealing and cutting rate is expressed in cycles per minute, not packs per minute. Please confirm the required configuration and utilities before ordering.
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
