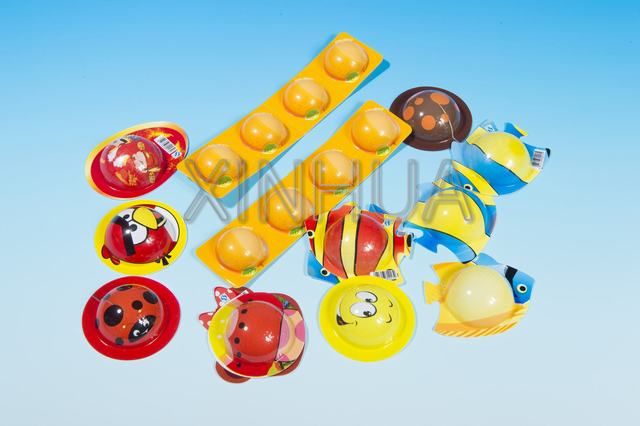

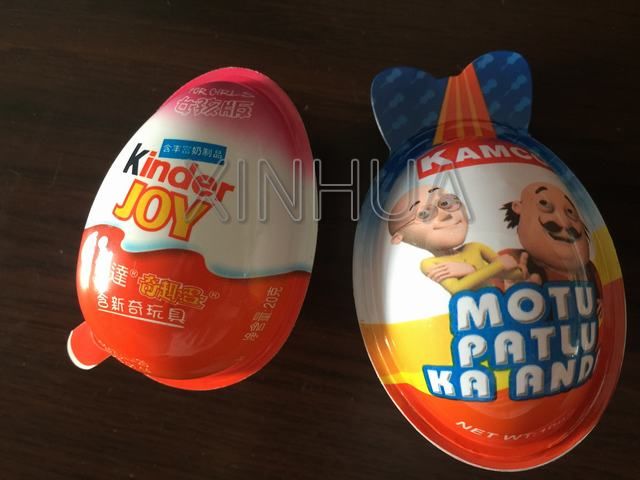

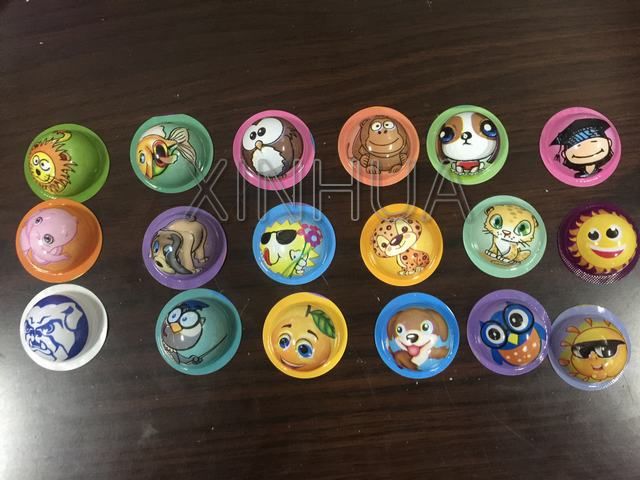

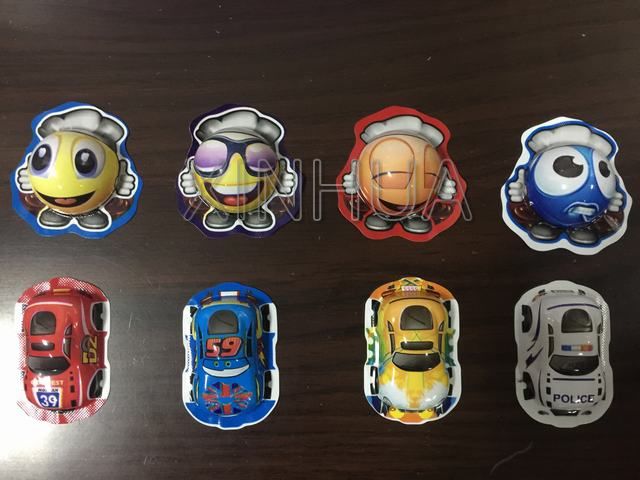

The QGF-ZC aligns and forms color plastic sheet, fills the product, seals the packaging and cuts the finished packs. It is designed for shaped packaging such as cartoon animals, cars and surprise eggs.
Applications include chocolate sauce, butter, candies, biscuits, toys, cosmetics and washing products. Share your product and packaging design so we can confirm a suitable configuration.
Color sheet alignment and forming → filling → sealing → batch number printing → cutting → finished pack discharge.
.JPG)
| Specification | QGF-ZC |
|---|---|
| Maximum forming area and depth | 160 × 250 × 24 mm |
| Standard plate | 80 × 57 mm; customizable |
| Sealing and cutting rate | 15–30 cycles/min with the standard plate |
| Stroke range | 40–160 mm; customizable |
| Sheet dimensions | 0.15–0.5 × 250 mm |
| Main motor power | 1.5 kW |
| Forming heater power | 5 kW |
| Heat-sealing heater power | 2 kW |
| Power supply | 3N–50 Hz, 380 V / 220 V |
| Working air pressure | 0.4–0.6 MPa |
| Air consumption | ≥ 0.3 m³/min |
| Mould cooling | Tap water or recirculating water |
| Machine dimensions (L × W × H) | 5500 × 620 × 1550 mm |
| Machine weight | 1800 kg |
The sealing and cutting rate is based on the standard plate and is expressed in cycles per minute. Please confirm your packaging design, configuration and utilities before ordering.
See the QGF-ZC package chocolate for a customer in Mongolia, including the filling, sealing and cutting process.
Watch the QGF-ZC chocolate packaging case video
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
