ZLD-2 Automatic Stand-Up Pouch Filling and Capping Machine

Request a ZLD-2 Quote Contact Our Sales Team

Overview

The ZLD-2 fills and caps stand-up pouches for liquid products. It combines automatic pouch feeding, filling and capping in one production process.

Applications

Suitable products include fruit juice, milk, soybean milk, jelly, beverages and cleaning agents. Send your product information and pouch drawing to confirm the required configuration.

Operating Process and Features

Automatic pouch feeding → measured filling → nozzle cleaning → cap feeding → capping → finished pouch discharge.

PLC control with a human-machine interface.
Pouch detection stops filling when no pouch is present.
Automatic liquid level control.

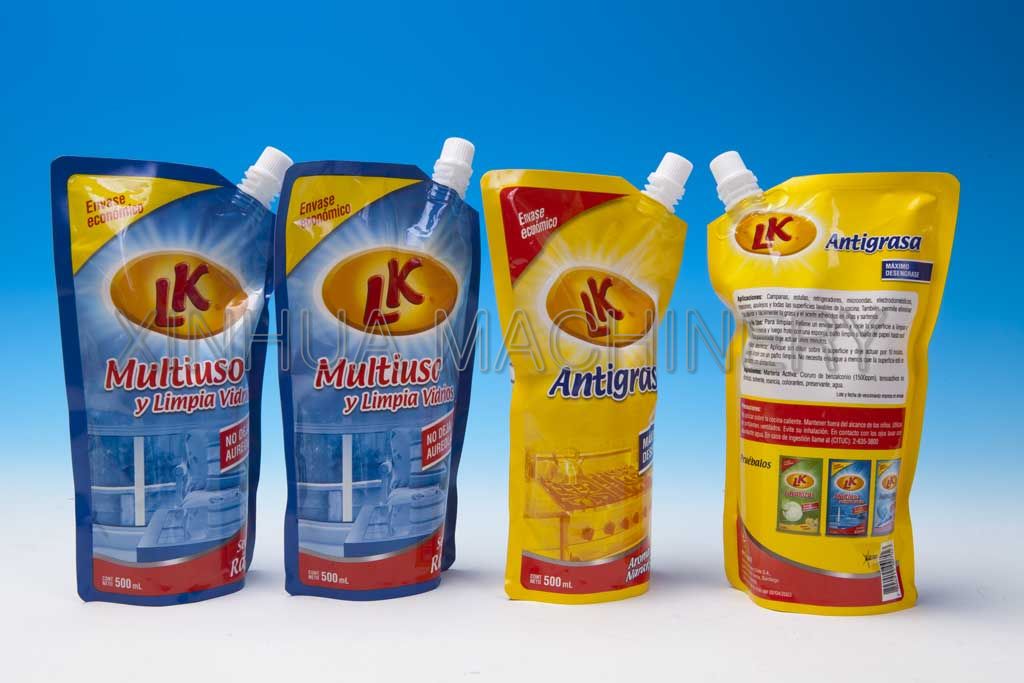

Examples of stand-up pouches for ZLD-2 filling and capping

Technical Specifications

Specification	Details
Model	ZLD-2
Filling volume	150–1,000 ml
Output	1,500–2,000 pouches/hour
Working air pressure	0.5–0.7 MPa
Power supply	3N–50 Hz, 380 V / 220 V
Motor power	1.1 kW
Dimensions (L × W × H)	1800 × 1150 × 1950 mm

Please confirm output and filling range for your product and pouch size.

Related Machines

Share your product and packaging requirements so we can help compare suitable configurations.

Request a Quote

For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
