DETAILED INFORMATION
Request a ZLA-5 Quote Contact Our Sales Team
The ZLA-5 fills and caps stand-up pouches. Operators load the pouches and place the caps; the machine performs measured filling, capping and finished pouch discharge automatically.

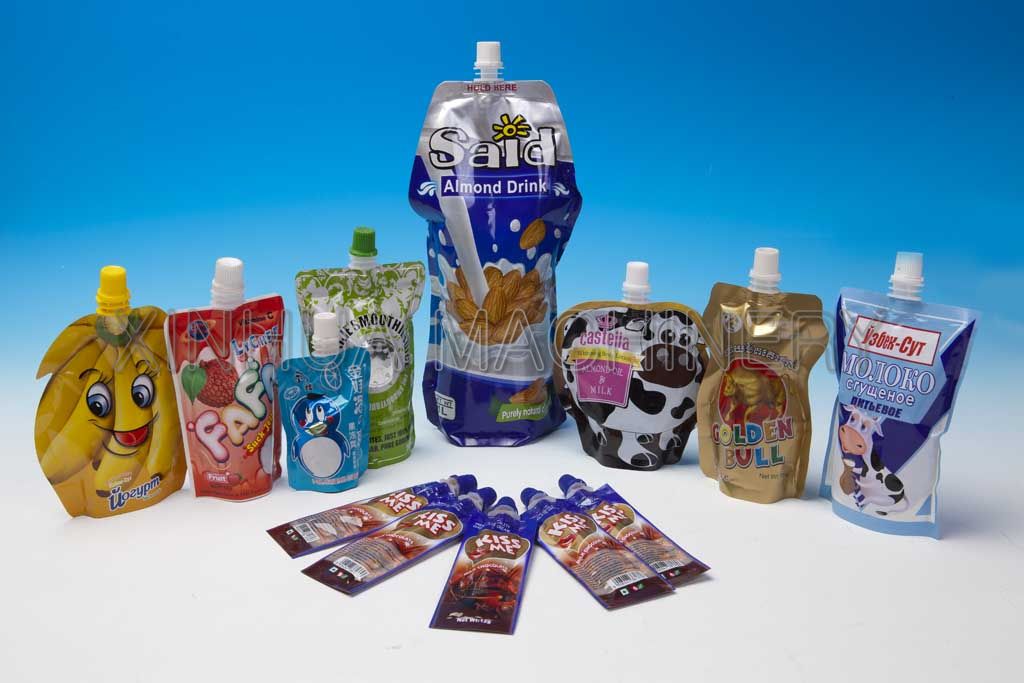

Designed for drinkable jelly, dairy products, fruit juice, beverages and daily chemical products. The filling configuration should be selected for the product and packaging.
Manual pouch loading → automatic measured filling → manual cap placement → automatic capping → automatic finished pouch discharge.
| Specification | Details |
|---|---|
| Model | ZLA-5 |
| Filling volume | 50–1,000 ml |
| Output | 4,000–5,000 pouches/hour |
| Working air pressure | 0.5–0.7 MPa |
| Power supply | 3N–50 Hz, 380 V / 220 V |
| Motor power | 1.2 kW |
| Dimensions (L × W × H) | 2400 × 1660 × 1980 mm |
Please confirm output for your product, pouch size and operating arrangement.
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
